Description
Overview:

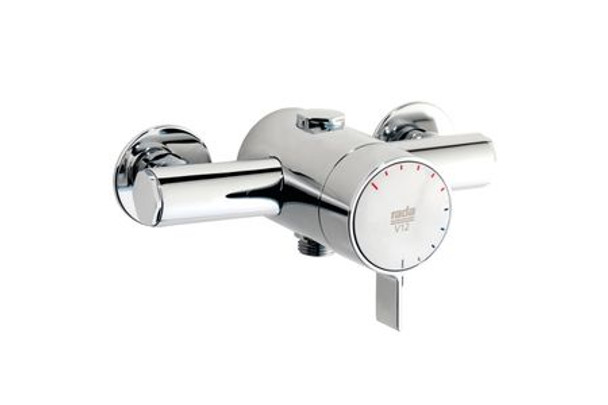

The Rada V12 exposed shower valve is a top-performing thermostatic shower valve designed for reliability and safety. With its TMV3 certification and Insutech technology, this surface-mounted valve ensures a comfortable and safe showering experience. The Insutouch feature keeps the unit cool to the touch, preventing scalding, while the built-in TMV3 system protects against scalding from the water.
Operating the valve is easy with a single lever that controls the temperature sequentially from cold to warm. The light touch control, complemented by easy-to-understand graphics, caters to users of all ages and abilities. The V12 Exposed option with Insutech technology reduces the surface temperature, providing an added level of safety.
Constructed with durability in mind, this shower valve is designed to withstand heavy usage in commercial environments. It meets the Buildcert TMV3 scheme requirements, ensuring high-quality performance and safety standards.
The Rada V12 shower valve offers additional water-saving features, including a 6 liter per minute flow regulator that promotes water efficiency. An optional 9 liter per minute flow regulator is also provided. Easy access filters make servicing the valve a simple task.
Technical Specification:
- Width: 205 mm
- WRAS: Yes
- Type: Thermostatic Shower Valve
- Temperature Control: Yes
- Suitable for: Designed for Low and High Pressure
- Standards Met: BS EN ISO 9001:2008 Quality Management Systems and BS EN ISO 14001:2004 Environmental Management Systems
- Outlet Size: 15 mm
- Outlet Connection: 15 mm Compression
- Minimum Static Pressure: 0.1 bar
- Minimum Operating Pressure: 0.1 bar
- Maximum Temperature: 43°C
- Maximum Static Pressure: 10 bar
- Maximum Operating Pressure: 5 bar
- Inlet Size: 15 mm
- Inlet Connections: 15 mm Compression
- Includes: Cartridge, Check Valves, Filters, and Optional Flow Regulators
- Flow Rate: 40 l/min
- Finish: Chrome
- Depth: 35 mm
- Colour: Chrome
- Certifications Met: Buildcert TMV3 Thermostatic Mixing Valve Scheme approved
- Range Description: Shower Mixer
- Manufacturer Model No: 1.1651.001
- Country Origin: United Kingdom
- Brand Name: Rada
