Description

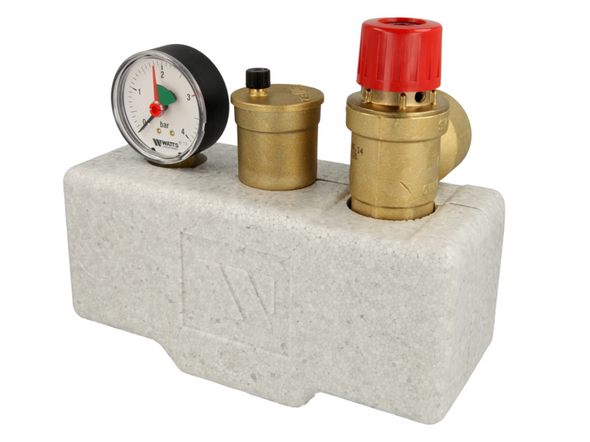

Preassembled boiler safety group assembly for closed heating systems up to 50 kW acc. to DIN EN 12828. The safety group assembly is fitted with a pressure gauge to display the actual pressure, an automatic air vent with aquastop and a safety relief valve to protect the system against overpressure. A high-quality insulation minimises heat losses.
| Connection size [inch]: | 1 |
| Heating capacity max. [kW]: | 50 |
| Operating pressure max. [bar]: | 3 |
| Material: | Brass |
| Insulation: | EPP |
| Temperature max. [°C]: | 120 |
| Measuring range [bar]: | 0 .. 4 |
| Manufacturer | Afriso |
| Manufacturer number | 77938 |
| EAN | 4016203779380 |
| Also replaces |
|
