Solar absorber complete set up to 12 m² water surface

Enjoy the summer time in your own pool - little effort, low costs and maximum gain! Using solar energy when heating swimming pools is particularly inexpensive. Benefit from the solar absorber complete set for pools with a water surface of up to 12 m². This absorber system is easy to install and ready-to-use in no time.

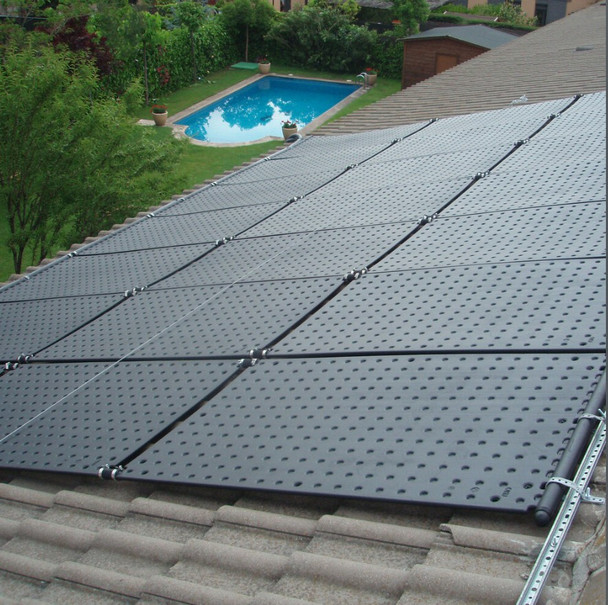

Flat and tilted roof areas and lawns are suitable for the arrangement of the plastic absorbers. Completely made of plastic, they have the advantage of being operated in a single-circuit system. The chlorinated pool water can directly flow through the absorbers without system separation by means of a corrosion-resistant circulation pump or by the already existing circulation pump.

cope of delivery:
6 x	Solar absorber side couplings with 2 couplings and collecting pipe
4 x	Solar connection hose with 2 stainless steel hose clamps
6 x	Solar aborber connection piece 25mm
1 x	Solar connection kit for PVC pipping
1 x	Solar vent set PVC tubing DN50
1 x	Dolar draining kit PVC tubing DN50
1 x	T piece 90° reduced 50 x 25 x 50mm
1 x	Reducer 25mm  x 1/2" IT
1 x	T Piece 45mm / 50mm
1 x	PVC dirt filter 0 50mm sieve 1.8mm with plastic sieve tube
1 x	UKO Control diff Temp controller, complete with 2 sensors and 2 immersion sleeves.
1 x	Three way motorised ball valve with 50mm actuator
1 x	PVC U Elbow 45° 50x 50mm cement socket
1 x	PVC U ball valve solvent socket ball valve
1 x	PVC Glue with brush
