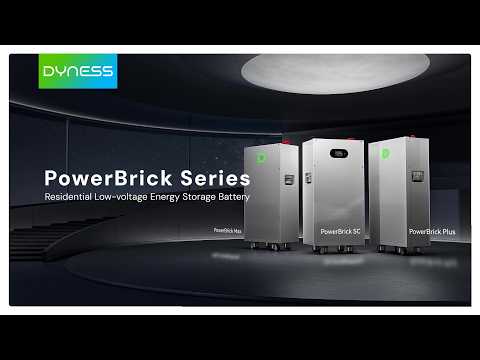

Dyness PowerBrick 16.07 kWh — Product Description
The Dyness PowerBrick 16.07 kWh is a high‑capacity, low‑voltage LiFePO₄ energy‑storage module designed for residential and light‑commercial applications where long lifespan, high safety, and scalable storage are essential. It forms part of Dyness’s latest-generation modular LV ecosystem, offering robust performance for both on‑grid and off‑grid systems.
⚡ Key Features & Performance
-
Usable Energy: 16.07 kWh Large single‑module capacity ideal for whole‑home backup or high‑demand commercial loads.
-
Battery Chemistry: LiFePO₄ (LFP) Known for exceptional thermal stability, long cycle life, and enhanced safety.
-
Depth of Discharge: Up to 100% Maximises usable energy and improves system efficiency.
-
Cycle Life: ≥ 6000 cycles Equivalent to 15+ years of daily cycling depending on usage profile.
-
Voltage Platform: Low‑voltage (48 V class) Compatible with a wide range of hybrid and off‑grid inverters.
? Safety & Protection
-
Integrated BMS with real‑time monitoring of voltage, current, temperature, and cell balancing.
-
Multiple hardware protection layers including over‑charge, over‑discharge, short‑circuit, and thermal protection.
-
LiFePO₄ chemistry ensures high thermal stability and non‑flammability.
-
IP20 enclosure Suitable for indoor installation.
- Self Heating -20 - 55°C operating temperature.
- Safety Protection Built-in aerosol fire extinguisher
? Scalability & System Design
-
Modular expansion — multiple PowerBrick units can be connected in parallel to build larger systems (typically up to 8–16 units depending on inverter).
-
Ideal for:
-
Whole‑home backup
-
Solar self‑consumption
-
Small commercial storage
-
Off‑grid cabins, workshops, and agricultural sites
-
? Compatibility
Works with most major 48 V hybrid inverter brands, including:
-
Solis
-
Deye/Sunsynk
-
Victron
-
Growatt
-
Sofar
