Description

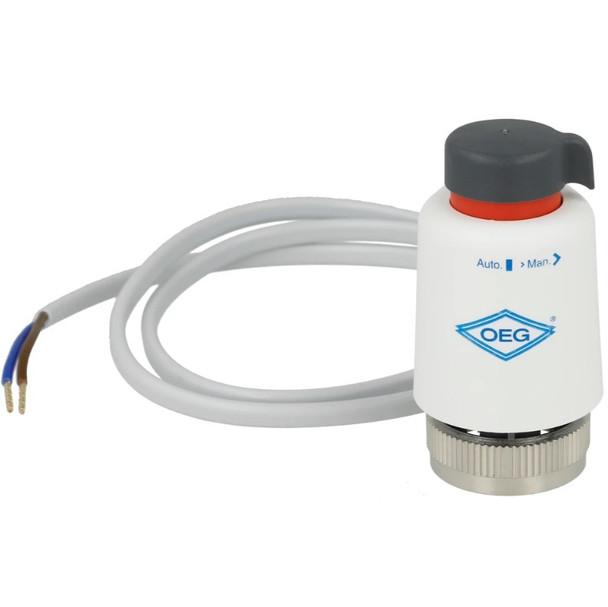

Energy-efficient electrothermic actuator for opening and closing valves of cooling and surface heating systems. Due to the low width of only 37 mm, small valve distances will not be a problem either.
The actuator has a "MANUAL" position allowing for an easy installation and maintenance. The red valve indicator shows reliably whether the valve is open or closed.
The actuator has an M30 x 1.5 connection and is compatible with Heimeier valves.
| Model: | Normally closed (NC) |
| Colour: | RAL 9,016 |
| Housing: | Plastic |
| Output [W]: | 1 |
| Voltage [V]: | 230 |
| Connection: | M30 x 1.5 |
| Media temperature max. [°C]: | 100 |
| Standard: | DIN EN 60730 |
| Installation width [mm]: | 37 |
| Closing time [s]: | 240 |
| Pulling force [N]: | 100 |
| Opening time [s]: | 240 |
| Protection type [IP]: |
 |
| Manufacturer | OEG |
| Brand | SilverTec® |
| Also replaces | 512002136, 512003315, 512002138, 210206831 |
| Weight [kg] | 0.15 |
| Notes |
 |
