Description
The TSDC 140 Litre Advance Thermal Store is designed for use with gas or oil boilers to deliver fast, safe and reliable mains‑pressure hot water throughout the home. The direct‑pattern (TSDC) cylinder does not include an integrated feed and expansion tank and must therefore be supplied from a remote F&E tank positioned above the highest point of the radiator circuit.
The system requires two pumps:
-
One for the boiler, maintaining store temperature via the store thermostat
-
One for the heating circuit, controlled by the room thermostat and heating programmer

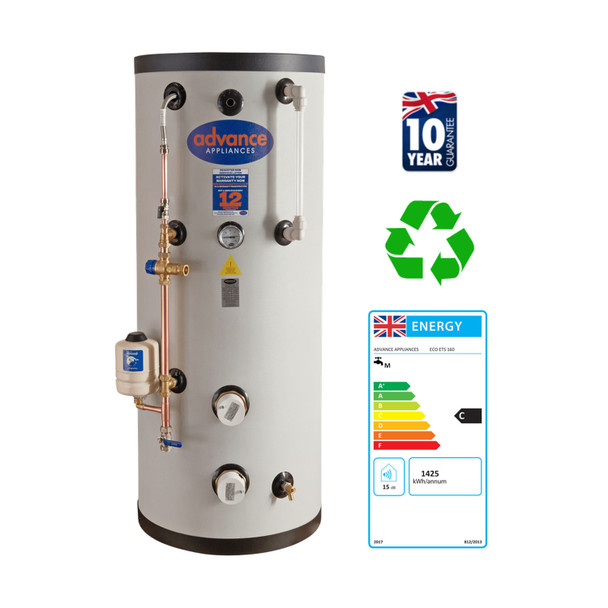

Advance Appliances 140 Litre Vented Thermal Store – Specification
-
Capacity: 140 litres
-
Dimensions: 600 mm diameter × 1086 mm height
-
Guarantee: 10 years (2 years on components)
-
Supplied with Hot Water Control Pack
-
Simple, reliable design – no PCB
-
Direct version: Provides buffering and rapid radiator heat‑up
-
Indirect version: Suitable for Y‑plan and sealed‑system boilers
-
Delivers mains‑pressure hot water
-
Safe open‑vented thermal store
These low‑maintenance, pre‑plumbed units deliver flow rates of up to 30 L/min and, when paired with a suitable gas, oil or LPG boiler, are ideal for medium to larger properties. The bottom coil must be pumped.
The TSDC range can also be used as a modern replacement for the Boilermate.
Each unit features a smart, wipe‑clean appliance‑grade finish and 60 mm foam‑injected insulation for maximum efficiency. Constructed from stainless steel, the cylinders are lightweight, durable and built for long service life. All models are manufactured in the UK and comply with the HWA Thermal Store Specification and Building Regulations.
